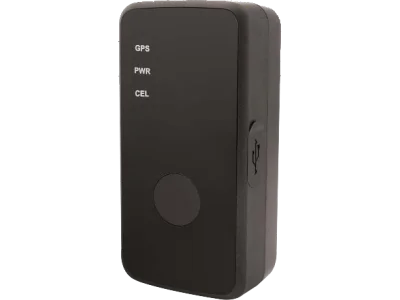

GL300VC GPS tracker
Queclink

Queclink GL300VC GPS Tracker · specs and protocol review

Server address

gps.traxelio.com:5004
GL200 Protocol (+RESP:GT text and +RSP binary)

Send positions to this server

Check your GL300VC

Enter the tracker IMEI first so Traxelio can confirm setup options before activation.

The Queclink GL300VC is a pocket CDMA2000-1x GNSS tracker on gl200 (TCP port 5004) · IPX5, 1300 mAh, SOS button, and 5 V USB charge set in Queclink Manage Tool or AT+GTBSI then AT+GTSRI SMS, then Traxelio shows live map and geofences. It is not a 12 V GSM vehicle box.

Review

Data Path

IMEI

Check First

Hardware

Review

Protocol known IMEI check first Setup review before activation Works with GL200 Protocol (+RESP:GT text and +RSP binary) protocol

Quick answers

Which protocol and port does the GL300VC use on Traxelio?

Queclink @Track decoded as gl200 on TCP port 5004. The radio is CDMA 800/1900, not GSM. A West African GSM SIM will not attach.

Does GL300VC wire to 12 V?

No. Charge is 5 V USB (external pack 3.5–4.2 V). For 8–32 V motorcycle or cabin boxes on the same @Track dialect, compare GV75 or GV300.

How do I provision GL300VC?

Queclink Manage Tool over UART, or SMS AT+GTBSI then AT+GTSRI with report mode 3. Traxelio does not publish a default PIN.

Can Traxelio cut an engine through GL300VC?

No vehicle digital output on the published I/O table. SOS and two digital inputs are the local actions. For a confirmed dashboard cut, compare GV300 or GV75.

Overview

About the GL300VC

The Queclink GL300VC is a pocket CDMA2000-1x asset tracker (BC0/BC1, 800/1900 MHz), not a GSM West Africa cabin box. It charges from 5 V USB, carries a 1300 mAh pack in an IPX5 78.5×38.5×22.5 mm case (70 g), and has a thumb SOS button with vibration. Traxelio still decodes @Track as gl200 on TCP port 5004 when the radio can attach. There is no vehicle digital output on the published I/O table. Point Queclink Manage Tool or AT+GTBSI then AT+GTSRI at gps.traxelio.com:5004.

About Queclink

Shanghai-based manufacturer (founded 2009) of the GV-series · the OEM hardware behind many North-American fleet platforms (OneStepGPS, Geotab-certified, Azuga).

Speaks the GL200 Protocol (+RESP:GT text and +RSP binary) protocol. Read the protocol reference →

Protocol known · setup review required

Traxelio recognizes this protocol, then checks the exact IMEI and model details before activation.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Queclink
Protocol GL200 Protocol (+RESP:GT text and +RSP binary)
Status Protocol known
Data Path Under review
Setup Signals IMEI check first
Hardware Scope Review before activation
Setup Check hardware →

Hardware specifications

Network CDMA
GNSS GPS, GLONASS
Voltage range 5V USB
Battery 1300 mAh
IP rating IPX5
Operating temperature -20 to +55 °C
Dimensions 78.5x38.5x22.5 mm
Weight 70 g
MPN GL300VC

Accessories

USB charge cable

5 V charge, not a vehicle harness

SKU: USB-5V-GL

CDMA SIM with data + SMS

Provisioning on BC0/BC1

SKU: SIM-CDMA

Certified

Certifications

CE

Downloads

GL300VC · Also sold as Queclink GL300 family by other brands · This device shares hardware with other OEM variants

Setup

Check Setup Options for Your GL300VC

Setup guidance

Setup review required

Traxelio reviews this model's protocol and IMEI before showing public setup steps.

Setup guidance

Enter the tracker IMEI so Traxelio can review this exact hardware before setup.

Check hardware
See the GL200 setup guide →

Download or log in to Queclink Manage Tool

Windows UART tool for APN and server. SMS path is AT+GTBSI then AT+GTSRI.

Desktop download

Common issues

Buyer wired it to 12 V in a car

GL300VC electrical table is 5 V USB. A vehicle harness will damage it. Compare GV300 for 8–32 V.

Silent on a Senegal GSM SIM

Radio is CDMA2000-1x BC0/BC1. Use a CDMA 800/1900 operator, or pick GL300W / GV300 for GSM/UMTS.

Expected IP67 dunk

Ingress is IPX5 (water-resistant). An IP67 magnetic holder is a GL300W accessory, not this case.

Queclink

Other Queclink Devices

Queclink

GV65

Verified

GL200
Queclink

GB100

GL200
Queclink

GB100MG

GL200
Queclink

GL100

GL100
View All Queclink Devices

Alternatives

Comparable devices

Queclink

Queclink GL300W Series

WCDMA/GSM pocket sibling with a 2600 mAh pack

 Teltonika

Teltonika GH-5200

2G personal USB unit on Codec 8 port 5027

 Queclink

Queclink GV300

8–32 V cabin 2G when the install is a vehicle harness

FAQ

Frequently Asked Questions

Common questions about using the GL300VC with Traxelio

Traxelio can receive position reports from the GL300VC over the GL200 protocol, and setup details are reviewed before activation.

Start with the IMEI check on this page. Traxelio will confirm whether this exact hardware can send position reports and what setup review is needed before activation.

This page lists the GL300VC as a tracker model with a known protocol. Traxelio shows self-service setup only when full protocol support is available.

Check your GL300VC before setup

Enter the tracker IMEI so Traxelio can review this exact hardware before activation.

Availability

Traxelio does not stock this model.

Connect a tracker you already own, or add a vehicle.

Connect your tracker Add vehicle to your fleet
