GT500 GPS tracker
Queclink

Queclink GT500 GPS Tracker · specs and details

Server address

gps.traxelio.com:5004
Queclink @Track Protocol (Traccar GL200 decoder, port 5004)

Send positions to this server

Check your GT500

Enter the tracker IMEI first so Traxelio can confirm setup options before activation.

The Queclink GT500 is a pocket GSM and Wi-Fi GNSS tracker on gl200 (TCP port 5004) · 1000 mAh pack and 5 V USB charge set in Queclink Manage Tool or AT+GTBSI then AT+GTSRI SMS, then Traxelio shows live map and geofences. It is not a 12 V vehicle box and has no immobilizer output.

IMEI

Check First

Hardware

Review

Protocol known IMEI check first Works with Queclink @Track Protocol (Traccar GL200 decoder, port 5004) protocol

Quick answers

Which protocol and port does the GT500 use on Traxelio?

Queclink @Track GNSS reports decode as gl200 on TCP port 5004. Point gps.traxelio.com and 5004 in Manage Tool.

Does GT500 wire to a vehicle battery?

No. Charge is USB in the personal housing. For 8–32 V, compare GV300 or GV75W.

How do I provision GT500?

Queclink Manage Tool over UART, or SMS AT+GTBSI then AT+GTSRI with report mode 3. Traxelio does not publish a default PIN.

Can Traxelio cut an engine through GT500?

No immobilizer output on this pocket housing. SOS/geofence alerts are the local actions. Compare GV300 for a digital output.

Overview

About the GT500

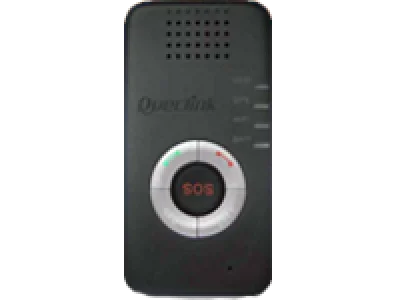

The Queclink GT500 is a pocket GSM/Wi-Fi personal tracker: quad-band GSM plus 802.11b/g, 94×48.5×18 mm, 90 g, and a 1000 mAh Li-ion pack. Traxelio decodes the @Track GNSS stream as gl200 on TCP port 5004. It is not a 12 V vehicle box and has no immobilizer output. Point Queclink Manage Tool or AT+GTBSI then AT+GTSRI at gps.traxelio.com:5004. Traxelio does not convert manufacturer standby hours into a day-count.

About Queclink

Looking for the Queclink configurator? Queclink supplies the tool. Use it to point a GV, GL or GMT tracker that sends @Track at gps.traxelio.com, port 5004.

Speaks the Queclink @Track Protocol (Traccar GL200 decoder, port 5004) protocol. Read the protocol reference →

Protocol known

Traxelio recognizes this protocol, then checks the exact IMEI and model details before activation.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Queclink
Protocol Queclink @Track Protocol (Traccar GL200 decoder, port 5004)
Status Protocol known
Setup Signals IMEI check first
Setup Check hardware →

Hardware specifications

Network 2G, GSM
GNSS GPS
Voltage range 5V USB
Battery 1000 mAh
Operating temperature -20 to +55 °C
Dimensions 94x48.5x18 mm
Weight 90 g
MPN GT500

Accessories

USB charge cable

5 V charge

SKU: USB-5V-GT

Standard SIM with data + SMS

GSM provisioning

SKU: SIM-DATA-SMS

Certified

Certifications

CE

Downloads

GT500 · Also sold as Queclink GT family by other brands

Setup

Check Setup Options for Your GT500

Setup guidance

Enter the tracker IMEI so Traxelio can review this exact hardware before setup.

Check hardware
See the Queclink setup guide →

Download or log in to Queclink Manage Tool

Windows UART tool for APN and server. SMS path is AT+GTBSI then AT+GTSRI.

Desktop download
Queclink GV500CG

Alternative model

Queclink GV500CG

This is not the same device, but it can be a practical alternative from the same brand.

F CFA 30,000

Common issues

Buyer expected a motorcycle IP67 puck

GT500 is a 18 mm personal slab with Wi-Fi. Compare GV75W for IP67 8–32 V.

Wi-Fi MAC never appears as a Traxelio map fix

Traxelio plots the gl200 GNSS stream on port 5004. Wi-Fi on the device is a manufacturer indoor assist, not a second Traxelio ingest.

SMS ignored

AT+GTBSI first, then AT+GTSRI mode 3. Password is the device password, not 123456.

Queclink

Other Queclink Devices

Queclink

GV65

Verified

Queclink
Queclink

GB100

Queclink
Queclink

GB100MG

Queclink
Queclink

GL100

GL100
View All Queclink Devices

Alternatives

Comparable devices

Queclink

Queclink GL300W Series

Newer WCDMA pocket sibling with a 2600 mAh pack

 Teltonika

Teltonika GH-5200

2G personal USB unit on Codec 8 port 5027

 Queclink

Queclink GV300

12 V cabin 2G when the job is a vehicle harness

FAQ

Frequently Asked Questions

Common questions about using the GT500 with Traxelio

Traxelio can receive position reports from the GT500 over the Queclink protocol, and setup details are confirmed from the IMEI.

Start with the IMEI check on this page. Traxelio will confirm whether this exact hardware can send position reports and what setup it needs before activation.

This page lists the GT500 as a tracker model with a known protocol. Traxelio shows self-service setup only when full protocol support is available.

Check your GT500 before setup

Enter the tracker IMEI so Traxelio can review this exact hardware before activation.
