Jimi IoT GT710 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5023
GT06 Protocol (Concox / Jimi family)

Send positions to this server

Connect your GT710

Enter the tracker IMEI first, then verify your email and continue setup.

The Jimi GT710 is a magnetic IP66 2G asset tracker on gt06 (TCP port 5023) · 4500 mAh pack and remove-alert, set with SERVER,1,gps.traxelio.com,5023,0#, then Traxelio shows live map and geofences for equipment and cargo on GSM in Senegal and West Africa.

10

Data Points

16+

Alerts

5

Vehicle Types

10-minute setup 2,347+ compatible devices No hardware changes needed Works with GT06 Protocol (Concox / Jimi family) protocol

Quick answers

Which protocol and port does GT710 use on Traxelio?

GT06 binary on TCP port 5023. Send SERVER,1,gps.traxelio.com,5023,0#. Do not pick gps103 (5001) or Teltonika (5027).

Is GT710 a wired vehicle tracker with engine cut?

No. It is a magnetic IP66 asset unit with a large internal pack and a remove-alert button. For a hardwired GT06 relay, compare GT06 or JM-VL01.

Does GT710 need an SMS password?

GT06 hash commands do not carry a PIN. SERVER,1,gps.traxelio.com,5023,0# then APN,#. Traxelio does not publish a default PIN on this page.

Why does the silkscreen say Concox?

Jimi IoT absorbed the Concox catalogue. This page lives at /trackers/jimi/gt710. GSC still has Concox-labelled queries; they resolve here.

Overview

About the GT710

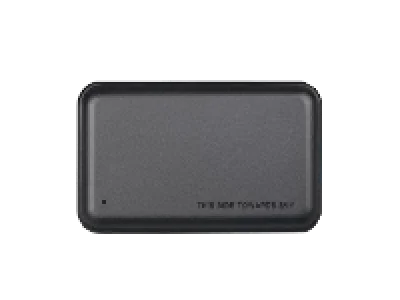

The Jimi GT710 (still searched as Concox GT710) is a magnetic IP66 2G GNSS tracker for assets, machinery, and cargo — not a hardwired vehicle GT06 with a fuel-cut relay. It has a 4500 mAh pack, a remove-alert button, and reports the GT06 binary dialect Traxelio decodes on TCP port 5023. Point it with SERVER,1,gps.traxelio.com,5023,0# then APN,#. Traxelio plots live map and geofences; there is no immobilizer output on this housing.

About Jimi IoT

Shenzhen-based manufacturer (now under Jimi IoT) of one of the broadest tracker catalogs in the industry · GT06N is the most-copied OBD/vehicle tracker design globally.

Speaks the GT06 Protocol (Concox / Jimi family) protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Jimi IoT
Protocol GT06 Protocol (Concox / Jimi family)
Status Compatible
Data Points 10
Supported Alerts 16+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus
Setup Start setup →

Hardware specifications

Network 2G, GSM
GNSS GPS
Battery 4500 mAh
IP rating IP66
Operating temperature -20 to +70 °C
Dimensions 79.6x50.3x30.7 mm
Weight 110 g
MPN GT710

Accessories

Standard SIM with data + SMS

Provisioning and live reporting

SKU: SIM-DATA-SMS

Certified

Certifications

CE

Downloads

GT710 · Also sold as Jimi GT710 family by other brands

Data Collected

What Your GT710 Reports to Traxelio

Your tracker sends 10 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 16+ live alerts from your GT710 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Key Benefits

Why Track Your GT710 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your GT710 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your GT710

Setup guidance

Guided setup available

gps.traxelio.com:5023

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the GT06 setup guide →

Download or log in to GT06 Tool / SMS SERVER hash

Windows GT06 Tool over UART, or SMS SERVER/APN hashes. Not Teltonika Configurator.

Desktop download
Concox JM-VL103D

Alternative model

Concox JM-VL103D

This is not the same device, but it can be a practical alternative from the same brand.

F CFA 35,000

Common issues

Buyer wired a fuel-cut relay to GT710

This housing has no vehicle DOUT. Compare JM-VL01 or GT06 for a hardwired relay. GT710 is magnetic asset tracking.

No GPRS after SERVER SMS

Send APN,# then GPRSON,1#. Confirm port 5023 not 5001. Hash commands must end with #.

Unit never wakes

Asset firmware sleeps between reports. Manufacturer standby tables assume one position per day. Use TIMER/MODE after it next wakes, or magnetic-mount it where GSM is usable.

Jimi IoT

Other Jimi IoT Devices

Jimi IoT

Concox GT800

Verified

GT06
Jimi IoT

JM-VL02

Verified

GT06
Jimi IoT

AM01

GT06
Jimi IoT

AT4

GT06
View All Jimi IoT Devices

Alternatives

Comparable devices

Jimi IoT

Jimi IoT GT06

Canonical wired GT06 vehicle page with relay cut

 Jimi IoT

Jimi IoT JM-VL01

4G hardwired vehicle sibling on the same gt06 port 5023

 SinoTrack

SinoTrack LK209C

Magnetic 2G alternative on LK-GPS SMS dialect

FAQ

Frequently Asked Questions

Common questions about using the GT710 with Traxelio

SMS: SERVER,1,gps.traxelio.com,5023,0# then APN,<carrier-apn># then GPRSON,1#. GT06 hash commands have no password. Optional Windows GT06 Tool over UART. Traxelio's setup block lists copy-ready strings.

No. GT06 on this site is the wired vehicle family with a relay. GT710 is a sealed magnetic asset tracker (IP66, 4500 mAh, remove-alert). Both speak gt06 binary on port 5023, which is why a GT710 still belongs on Traxelio.

No. Hash commands (SERVER, APN, TIMER) do not embed a PIN. Traxelio does not publish a default PIN on this page.

No immobilizer output on this housing. For a confirmed dashboard cut on GT06 binary, compare JM-VL01 or the wired GT06 page.

Yes, the GT710 is fully compatible with Traxelio. Connect your device and start tracking in minutes with live GPS location, geo-fencing, alerts, and trip history.

Create your Traxelio account, provide your GT710 tracker IMEI, and Traxelio guides the remaining setup.

The GT710 works with all core Traxelio features: live tracking, trip history, geo-zone alerts, speed alerts, and more. Premium features like driving behavior analysis and activity reports are also available.

Traxelio plans start at 17 USD per vehicle per month with the Basic plan. Premium and Platinum plans offer additional features like driving behavior analysis, documents storage, and advanced reporting.
