Concox's wired 4G Cat-M1 fleet tracker with a controllable immobilizer relay and 3-axis driver scoring · a future-proof step up from 2G as networks retire, sourced and fitted by Traxelio in Dakar.
Data Points
Alerts
Vehicle Types
It runs on 4G LTE Cat-M1 with a 2G fallback, so it keeps reporting after 2G carriers switch off. For hardware you buy once and keep for years, that avoids a forced mid-life replacement across the whole fleet.
Yes, through the relay output. Traxelio never auto-fires it: an operator confirms each request, and the platform disables the next ignition rather than stopping a vehicle in motion.
Its 3-axis accelerometer flags harsh braking, acceleration, and cornering. Traxelio turns those events into per-driver scorecards, which is the point of the device for managers running many vehicles.
Traxelio stocks and fits it in Dakar (Ouest Foire). Order the unit with installation, or send us the IMEI if you already own one and we confirm compatibility before you commit.
Overview

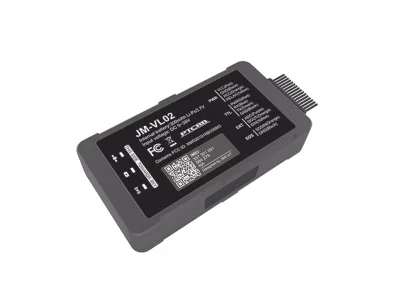

The Concox JM-VL02, built by Jimi IoT, is a wired 4G LTE Cat-M1 fleet tracker with 2G fallback, an IP65 housing, and a controllable cut-off relay. It reports over the GT06 protocol that Traxelio decodes directly, so a fleet runs live positions, driver scoring, and remote immobilization from one dashboard. Traxelio sources the unit and installs it in Dakar Ouest Foire on appointment.
About Jimi IoT
Shenzhen-based manufacturer (now under Jimi IoT) of one of the broadest tracker catalogs in the industry · GT06N is the most-copied OBD/vehicle tracker design globally.
Speaks the GT06 Protocol (Concox / Jimi family) protocol. Read the protocol reference →
Works with Traxelio · connect it yourself
Verify your email, then add the tracker details on the next screen.
Concox/Jimi IoT ships consumer-grade trackers (BLE, personal) with their own mobile apps (Carmatrix on iOS/Android). Fleet-grade GT06/JM-VL/WeTrack devices report to a platform · Concox provides iTrackOnline as the default, but the open gt06 protocol means Traxelio reads the same packets without any vendor lock-in.
Technical Specs
| Brand | Jimi IoT |
| Protocol | GT06 (Concox / Jimi family) |
| Status | Verified |
| Data Points | 10 |
| Supported Alerts | 16+ |
| Compatible Vehicles |
Car
Motorcycle
Pick up
Truck
Bus
|
| Setup | Start setup → |
Certified
Data Collected
Your tracker sends 10 data points with every position update, giving you complete visibility.
Live latitude and longitude coordinates updated every few seconds.
Current vehicle speed in km/h, used for speed alerts and driving analysis.
Elevation above sea level, useful for terrain and route analysis.
Direction of travel in degrees, shown as compass bearing on the map.
Reverse-geocoded street address for every position update.
GPS signal precision in meters, indicating location reliability.
Engine on/off status detected via the vehicle wiring harness.
Cumulative distance traveled, used for mileage reports and maintenance.
Total engine running time, key for service interval tracking.
Device or vehicle battery voltage to detect low-power conditions.
Data availability depends on device configuration and installation type.
Detectable Events
Receive 16+ live alerts from your JM-VL02 via push notification, email, or WhatsApp.
The device is back online and transmitting data.
The device has stopped reporting. It may have lost connection or power.
The vehicle is currently in motion.
The vehicle is stationary.
The vehicle is exceeding the set speed limit.
The vehicle has entered a defined zone.
The vehicle has exited a defined zone.
Possible towing activity detected, check vehicle status.
The ignition is ON. The engine has started.
The ignition is OFF. The engine has been stopped.
The vehicle has been idling for a long period.
Hard braking detected, driver safety alert.
Rapid acceleration detected, driving behavior alert.
Sharp turning detected, driving behavior alert.
Potential impact detected based on sudden deceleration and course change pattern.
Key Benefits
See all your vehicles on a live map
Accurate mileage and trip history for billing and disputes
Controlled immobilizer support for compatible installations
Know instantly when vehicles cross designated zones
Track speeding, harsh braking, and risky driving
Get alerts when vehicles move outside working hours
Identify fuel waste from idling and inefficient routes
Get reminders before breakdowns happen
Plan optimal routes and increase deliveries per day
Control who can see and manage which vehicles
Enter the tracker IMEI first, then verify your email and continue setup.
Setup
Setup guidance
gps.traxelio.com:5023
Public setup commands are available on the protocol guide for this command family.
APN commands depend on the carrier SIM in your tracker, so they are not shown here.
View protocol setup guideSetup guidance
Enter the tracker IMEI first, then verify your email and continue setup.
Pricing
This device retails for $28.00 – $45.00
Traxelio plan from 17 USD/mo · See all plans →
Cat-M1 needs an M2M SIM with Cat-M1 explicitly enabled by the carrier · a plain consumer data SIM often is not. Confirm the plan supports LTE-M, then write the correct APN before expecting a 4G attach.
The relay output drives a low-current coil, never the starter or fuel pump directly. Wire it through a dedicated 5-pin automotive relay so the cut is clean and reversible.
Usually the server endpoint or APN was left unset. Traxelio's onboarding note ships the exact GT06 server IP, port, and carrier APN strings for Orange SN and Free SN.
Jimi IoT
Alternatives
FAQ
Common questions about using the JM-VL02 with Traxelio
Start setup yourself, with help available when you need it.
