FM3622 GPS tracker
Teltonika

Teltonika FM3622 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5027
Teltonika Codec 8 Protocol

Send positions to this server

Connect your FM3622

Enter the tracker IMEI first, then verify your email and continue setup.

Teltonika FM3622 is a 3G vehicle tracker with an internal backup battery. Teltonika lists it as end of life, and an existing unit can report to Traxelio once its server settings are changed.

12

Data Points

17+

Alerts

6

Vehicle Types

10-minute setup 1,905+ compatible devices No hardware changes needed Works with Teltonika Codec 8 Protocol protocol

Quick answers

Does the Teltonika FM3622 work with Traxelio?

Yes. A public device list shows the Teltonika FM3622 on the Teltonika protocol, port 5027, and Traxelio serves that protocol. Set the unit to send to port 5027 over TCP, using gps.traxelio.com or the server IP from Traxelio support if the Configurator rejects a hostname, add its IMEI in Traxelio, and check that the first position arrives.

How do I point an FM3622 at Traxelio?

Connect the unit to a PC with a Micro-USB cable and open the FM Configurator. In the GPRS settings, enter the carrier's APN, the server address and port 5027, and choose TCP. Teltonika's page describes the server field as an IP address, so if a hostname is rejected, ask Traxelio support for the server IP. Save to the device with the Save button, because edits do not apply until saved.

Is the FM3622 still sold?

Teltonika stopped production. Its product page tags the FM3622 as end of life, with end of production on 2017-11-27 and end of support on 2020-11-27. An FM3622 you already own can keep sending positions to Traxelio as long as its SIM and carrier network remain active. For a new vehicle, choose a current Teltonika model or ask Traxelio support which tracker fits.

What network does the FM3622 need?

Teltonika's wiki describes the FM3622 as a 3G tracker, and its GPRS settings let you either prefer 3G with a switch to GSM when 3G is missing, or use GSM only. Before reusing a unit, confirm that your carrier still runs 3G or GSM where the vehicle drives, because that decides whether it can connect.

How should I wire an FM3622?

Follow Teltonika's first-start guide. Connect the wires with the unit unplugged, fit a 3 A, 125 V external fuse, and tap power at the battery terminals or the main power cable in the fuse box. Use a true ignition wire, one that keeps power after the engine starts, and join the ground wire to the vehicle frame or a metal part fixed to it.

Overview

About the FM3622

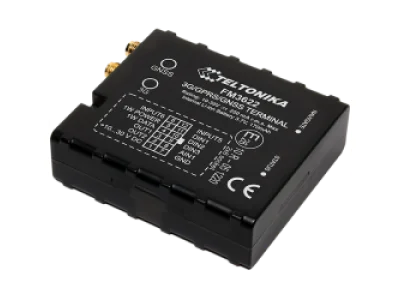

The Teltonika FM3622 is a 3G vehicle tracker that Teltonika's wiki describes as a small professional unit with external high gain GNSS and 3G antennas and an internal backup battery. It runs on a 10 to 30 V supply and has a 2x6 socket with digital inputs, two analog inputs, two digital outputs, a 1-Wire connection and RX and TX pins for Teltonika's LVCAN input. Teltonika's product page tags the model as end of life, with production ended on 2017-11-27 and support ended on 2020-11-27, so this page is written for owners who already run an FM3622 and for buyers weighing a replacement. A public device list shows the FM3622 on the Teltonika protocol, which Traxelio serves, so a unit you already own can report to Traxelio without a hardware swap. Enter your carrier's APN, the Traxelio server address and port, and TCP as the protocol in the FM Configurator over Micro-USB, save the settings to the device, then add the IMEI in Traxelio and wait for the first position.

About Teltonika

Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.

Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Teltonika
Protocol Teltonika Codec 8 Protocol
Status Compatible
Data Points 12
Supported Alerts 17+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus Fuel Tank
Setup Start setup →

Downloads

Data Collected

What Your FM3622 Reports to Traxelio

Your tracker sends 12 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Fuel Level

Fuel tank level percentage, used for refill detection and consumption reports.

Network

Network / Cell Info

Cell tower and signal strength data for connectivity diagnostics.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 17+ live alerts from your FM3622 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Fuel Refill

A fuel refill was detected.

Key Benefits

Why Track Your FM3622 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your FM3622 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your FM3622

Setup guidance

Guided setup available

gps.traxelio.com:5027

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the Teltonika setup guide →

Download or log in to Teltonika Configurator

Configurator is a desktop app (Windows) used to set the server endpoint, accelerometer thresholds, geofence rules, and I/O assignments on FMB/FMC/FMM devices over USB. Codec 8 + GPRS settings are read and written from the same screen. There is no end-user mobile app · Teltonika devices report to a platform, the platform (Traxelio, Wialon, Navixy, etc.) provides the user app.

Desktop download

Common issues

The tracker does not register on the network

The FM3622 is a 3G unit, so first check that the SIM has data, credit and a carrier that still serves 3G or GSM in your area. Then check the APN with your carrier. If the carrier needs CHAP or PAP login, Teltonika's wiki says to enter the APN as chap: or pap:.

The tracker is online but nothing shows in Traxelio

Check, in this order: the destination port is 5027, the protocol is TCP, the server address is the Traxelio one, and the IMEI added in Traxelio matches the unit's label. Also make sure the unit sees the sky for a GNSS fix. If the Configurator rejected the hostname, use the server IP from Traxelio support.

New settings disappear after a restart

The FM3622 keeps one user profile that must be written to the device. After changing anything in the FM Configurator, press Save, and use Load Defaults before entering new parameters, as Teltonika's guide describes.

The unit reboots or behaves unevenly in the vehicle

Teltonika's guide warns that a poor ground can make the FM3622 unstable or even fail. Connect power and ground at the battery terminals or the fuse box main cable, scrape paint from the ground contact point, and keep the 3 A fuse in the power line.
