iButton reader DS1990A
Driver identification
SKU: DS1990A
2G/GSM wired Teltonika fleet workhorse with internal battery, BLE 4.0 and full I/O · a common fleet fit in West African markets where 2G is still the backbone.
Data Points
Alerts
Vehicle Types
In Senegal, Mali, Côte d'Ivoire and most of West Africa · yes, 2G is still the backbone and FMB920 is the default. In the EU and US, plan a Cat-M1 upgrade (FMC920) by 2027.
3 digital inputs, 1 digital output, 2 analog inputs, 1-Wire interface for iButton / temperature, BLE 4.0 for sensors. Cut-off relay supported via the digital output.
It's a wired install · 4 wires (+12V, GND, ignition, output to relay). Doable on a workbench, harder under a dashboard. Budget 45-60 min for clean install. Traxelio installs in Dakar (Ouest Foire) on appointment.
Yes via the 1-Wire interface. Pair an iButton reader with FMB920 and Traxelio identifies who drove each trip · matches taxi/VTC and shared-vehicle use cases perfectly.
Overview

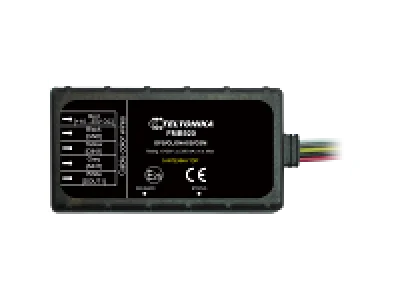

Teltonika FMB920 is a 2G/GSM wired vehicle tracker · the workhorse fleet device with full I/O, BLE 4.0, and an internal battery. Compatible with Traxelio out of the box.
About Teltonika
Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.
Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →
Works with Traxelio · send us the IMEI
Free compatibility check · 24h response
Configurator is a desktop app (Windows) used to set the server endpoint, accelerometer thresholds, geofence rules, and I/O assignments on FMB/FMC/FMM devices over USB. Codec 8 + GPRS settings are read and written from the same screen. There is no end-user mobile app · Teltonika devices report to a platform, the platform (Traxelio, Wialon, Navixy, etc.) provides the user app.
Technical Specs
| Brand | Teltonika |
| Protocol | Codec 8 / Codec 8 Extended |
| Status | Verified |
| Data Points | 12 |
| Supported Alerts | 17+ |
| Compatible Vehicles |
Car
Motorcycle
Pick up
Truck
Bus
Fuel Tank
|
| Setup | Contact us for setup details → |
Driver identification
SKU: DS1990A
Cargo / reefer temperature
SKU: DS18B20
Engine immobilizer wiring
SKU: REL-5P-12V
Certified
Data Collected
Your tracker sends 12 data points with every position update, giving you complete visibility.
Live latitude and longitude coordinates updated every few seconds.
Current vehicle speed in km/h, used for speed alerts and driving analysis.
Elevation above sea level, useful for terrain and route analysis.
Direction of travel in degrees, shown as compass bearing on the map.
Reverse-geocoded street address for every position update.
GPS signal precision in meters, indicating location reliability.
Engine on/off status detected via the vehicle wiring harness.
Cumulative distance traveled, used for mileage reports and maintenance.
Total engine running time, key for service interval tracking.
Device or vehicle battery voltage to detect low-power conditions.
Fuel tank level percentage, used for refill detection and consumption reports.
Cell tower and signal strength data for connectivity diagnostics.
Data availability depends on device configuration and installation type.
Detectable Events
Receive 17+ live alerts from your FMB920 via push notification, email, or WhatsApp.
The device is back online and transmitting data.
The device has stopped reporting. It may have lost connection or power.
The vehicle is currently in motion.
The vehicle is stationary.
The vehicle is exceeding the set speed limit.
The vehicle has entered a defined zone.
The vehicle has exited a defined zone.
Possible towing activity detected, check vehicle status.
The ignition is ON. The engine has started.
The ignition is OFF. The engine has been stopped.
The vehicle has been idling for a long period.
Hard braking detected, driver safety alert.
Rapid acceleration detected, driving behavior alert.
Sharp turning detected, driving behavior alert.
Potential impact detected based on sudden deceleration and course change pattern.
A fuel refill was detected.
Key Benefits
See all your vehicles on a live map
Accurate mileage and trip history for billing and disputes
Remotely disable stolen vehicles and recover them quickly
Know instantly when vehicles cross designated zones
Track speeding, harsh braking, and risky driving
Get alerts when vehicles move outside working hours
Identify fuel waste from idling and inefficient routes
Get reminders before breakdowns happen
Plan optimal routes and increase deliveries per day
Control who can see and manage which vehicles
Send us the IMEI, we confirm compatibility within 24 h and walk you through the setup. No credit card required to test.
Setup
Pros
Cons
Pros
Pricing
This device retails for $45.00 – $65.00
Traxelio plan from 17 USD/mo · See all plans →
Available at Traxelio
We don't carry the FMB920, but we stock a similar model from the same brand.
£85.14
Most common: APN not set in Configurator. Confirm internet.orange.sn (or your carrier's APN) is written to the device. Second cause: server IP/port wrong. Traxelio's onboarding guide ships the exact strings.
Check digital output wiring · should drive a low-current relay coil, never the fuel pump directly. Traxelio dashboard requires explicit confirmation before sending engine-stop commands, no auto-fire.
GPS jitter at low signal · normal. Configure 'movement source' to ignition + GPS instead of GPS-only in Configurator. Traxelio applies a 10m movement threshold by default.
Teltonika
Alternatives
FAQ
Common questions about using the FMB920 with Traxelio
Set up in under 10 minutes. No technical expertise required.
