FM6320 GPS tracker
Teltonika

Teltonika FM6320 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5027
Teltonika Codec 8 Protocol

Send positions to this server

Connect your FM6320

Enter the tracker IMEI first, then verify your email and continue setup.

Teltonika FM6320 is a 3G heavy-transport tracker with two CAN channels, a K-Line tachograph input and two SIM slots. Teltonika's wiki files it under end-of-life products, and an existing unit can report to Traxelio.

12

Data Points

17+

Alerts

6

Vehicle Types

10-minute setup 2,347+ compatible devices No hardware changes needed Works with Teltonika Codec 8 Protocol protocol

Quick answers

Does the Teltonika FM6320 work with Traxelio?

Yes. A public device list shows the Teltonika FM6320 on the Teltonika protocol, port 5027, and Traxelio serves that protocol. Point the tracker at gps.traxelio.com on port 5027 over TCP, add its IMEI in Traxelio, and check that the first position arrives.

How do I point an FM6320 at Traxelio?

Connect the unit by USB and open the FM6320 Configurator. In the GPRS section of the GSM settings, enter the carrier's APN, the server domain gps.traxelio.com, port 5027 and TCP, then press Save, since changes only apply once saved to the device. Teltonika says the Configurator is released through its sales contacts, so ask Teltonika or your reseller for the current version.

Can I configure an FM6320 by SMS?

Teltonika's wiki describes SMS control: every SMS starts with the SMS login, a space and the SMS password, then the command. With no login set, start with two spaces. Teltonika's FM6320 pages list their own parameter numbers, which may differ from FMB models, so make server settings in the Configurator, or check Teltonika's FM6320 manual before sending any command.

Is the FM6320 still sold?

Teltonika's wiki lists the FM6320 under end-of-life products, and the model has no current page on Teltonika's trackers listing. A unit you already own can keep reporting to Traxelio while its SIM and 3G network stay active. For a new vehicle, pick a current Teltonika tracker or ask Traxelio support which one fits.

Does the FM6320 read CAN and tachograph data?

The FM6320 has two SAE J1939 CAN channels and a K-Line input for tachograph vehicle data, and its Configurator has AutoCAN, manual CAN, LVCAN and K-Line sections. Which values arrive depends on the truck and the setup. Positions are the baseline on Traxelio, so test the CAN or tachograph values you rely on with one vehicle first.

Overview

About the FM6320

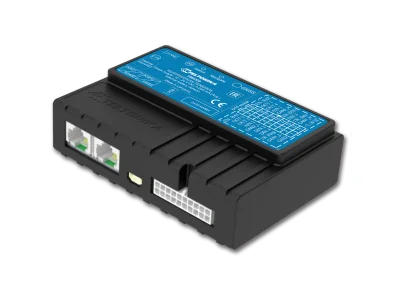

The Teltonika FM6320 is a 3G tracker that Teltonika's wiki calls a heavy transport tracking device, a GNSS and GSM terminal with a Ni-MH backup battery. Its 20-pin socket takes a 10 to 30 V supply and carries four digital inputs, three analog inputs, four digital outputs, a 1-Wire connection, two SAE J1939 CAN channels and a K-Line input for tachograph data. It holds two SIM slots and a microSD slot, and when the GSM network is unavailable it stores records on the card, up to 192,000 with a 128 MB card when 100 MB are used for records. Teltonika's wiki files the FM6320 under end-of-life products, so this page is for owners who already run the unit. A public device list shows it on the Teltonika protocol, which Traxelio serves, so an existing FM6320 can report to Traxelio without new hardware. In the FM6320 Configurator over USB, set the APN, then the Traxelio server address and port with TCP, save to the device, add the IMEI in Traxelio and confirm the first position.

About Teltonika

Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.

Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Teltonika
Protocol Teltonika Codec 8 Protocol
Status Compatible
Data Points 12
Supported Alerts 17+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus Fuel Tank
Setup Start setup →

Data Collected

What Your FM6320 Reports to Traxelio

Your tracker sends 12 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Fuel Level

Fuel tank level percentage, used for refill detection and consumption reports.

Network

Network / Cell Info

Cell tower and signal strength data for connectivity diagnostics.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 17+ live alerts from your FM6320 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Fuel Refill

A fuel refill was detected.

Key Benefits

Why Track Your FM6320 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your FM6320 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your FM6320

Setup guidance

Guided setup available

gps.traxelio.com:5027

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the Teltonika setup guide →

Download or log in to Teltonika Configurator

Configurator is a desktop app (Windows) used to set the server endpoint, accelerometer thresholds, geofence rules, and I/O assignments on FMB/FMC/FMM devices over USB. Codec 8 + GPRS settings are read and written from the same screen. There is no end-user mobile app · Teltonika devices report to a platform, the platform (Traxelio, Wialon, Navixy, etc.) provides the user app.

Desktop download

Common issues

The tracker does not register on the network

The FM6320 is a 3G device with two SIM slots, slot 1 nearer the board and slot 2 the upper one. Check that the SIM sits in the slot you configured, has data and credit, and that your carrier still serves 3G or GSM where the truck drives. If the carrier needs CHAP or PAP login, enter the APN as chap: or pap:.

The tracker is online but nothing shows in Traxelio

Check, in this order: the domain is gps.traxelio.com, the port is 5027, the protocol is TCP, and the IMEI added in Traxelio matches the unit's label. Then confirm the unit has a GNSS fix outdoors. Teltonika's second server entry duplicates data to another server, so keep it empty unless you want that.

Configurator changes are not kept

After every change in the FM6320 Configurator, press Save to write the profile to the device. The unit holds four editable profiles, so use Get Actual Profile to see which one is active before you edit.

The unit does not start or reports no ignition

Teltonika's guide reserves digital input 1 for the ignition line and asks for a true ignition wire, one that keeps power after the engine starts. Check that wire and a firm ground to the vehicle frame.
