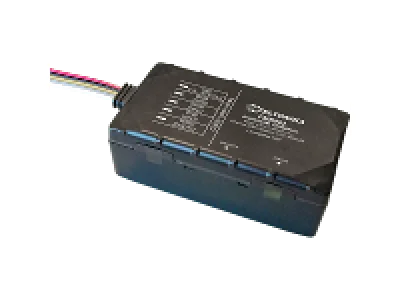

FMB962 GPS tracker
Teltonika

Teltonika FMB962 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5027
Teltonika Codec 8 Protocol

Send positions to this server

Connect your FMB962

Enter the tracker IMEI first, then verify your email and continue setup.

The Teltonika FMB962 is a hardwired 2G GNSS tracker on Codec 8 (port 5027) · 400 mAh Ni-MH backup and 1x5 harness set in Teltonika Configurator, then Traxelio shows live map, geofences, and confirmed immobilizer cut on GSM in Senegal and West Africa.

12

Data Points

17+

Alerts

6

Vehicle Types

10-minute setup 2,351+ compatible devices No hardware changes needed Works with Teltonika Codec 8 Protocol protocol

Quick answers

Which protocol and port does the FMB962 use on Traxelio?

Teltonika Codec 8 Extended AVL on TCP port 5027. Set gps.traxelio.com and 5027 in Configurator 2004/2005. Do not pick h02 or gt06.

What battery is inside FMB962?

400 mAh Ni-MH at 7.2 V in the package. Wiki tables that list 170 mAh Li-ion or 1800 mAh Li-Po describe other housings. Traxelio does not publish a day-count runtime for this pack.

How do I provision FMB962?

Teltonika Configurator over USB or Bluetooth (pairing code 5555). SMS uses two leading spaces then setparam. There is no four-digit SMS PIN.

How is FMB962 different from FMB900?

Same 1x5 I/O class. FMB962 adds the Ni-MH pack and a thicker 79x43x27.5 mm case. FMB900 is 12 mm tall with no internal pack. Both speak Codec 8 on port 5027.

Overview

About the FMB962

The Teltonika FMB962 is a hardwired 2G GNSS tracker with a 400 mAh Ni-MH 7.2 V backup pack, Bluetooth 3.0, one digital input, one analog input, and one open-collector digital output on a 1x5 harness. It reports Codec 8 AVL on port 5027. Ignore sibling tables that list a 170 mAh Li-ion pack or an 1800 mAh Li-Po cell — this housing is the Ni-MH unit. Traxelio plots live map, geofences, and confirmed immobilizer cut after dashboard confirmation.

About Teltonika

Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.

Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Teltonika
Protocol Teltonika Codec 8 Protocol
Status Compatible
Data Points 12
Supported Alerts 17+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus Fuel Tank
Setup Start setup →

Hardware specifications

Network 2G, GSM
GNSS GPS, GLONASS, Galileo, BeiDou
Voltage range 6-30V
Battery 400 mAh
IP rating IP54
Operating temperature -25 to +55 °C
Dimensions 79x43x27.5 mm
MPN FMB962

Accessories

12V/30A immobilizer relay (5-pin)

Open-collector DOUT wiring for engine cut

SKU: REL-5P-12V

Standard SIM with data + SMS

Provisioning and live reporting

SKU: SIM-DATA-SMS

Certified

Certifications

CE RED E-Mark RoHS

Downloads

FMB962 · Also sold as Teltonika FMB9XX family by other brands

Data Collected

What Your FMB962 Reports to Traxelio

Your tracker sends 12 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Fuel Level

Fuel tank level percentage, used for refill detection and consumption reports.

Network

Network / Cell Info

Cell tower and signal strength data for connectivity diagnostics.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 17+ live alerts from your FMB962 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Fuel Refill

A fuel refill was detected.

Key Benefits

Why Track Your FMB962 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your FMB962 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your FMB962

Setup guidance

Guided setup available

gps.traxelio.com:5027

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the Teltonika setup guide →

Download or log in to Teltonika GPS / Configurator

Desktop Teltonika Configurator for APN and server setup · FMBT Android app covers BLE checks on supported FMB models.

Google Play Desktop download
Teltonika FMC125

Alternative model

Teltonika FMC125

This is not the same device, but it can be a practical alternative from the same brand.

$106.92

Common issues

Buyer expected a three-day standby figure

Manufacturer Ni-MH capacity is 400 mAh. Traxelio does not convert that into a day-count. Report interval and GSM attach dominate drain. Compare FMB965 if you need a sealed high-capacity pack.

SMS setparam ignored

Blank Teltonika SMS login needs two leading spaces. If the phone strips them, configure over USB.

Specs mixed with an IP41 170 mAh table

That second table is a sibling housing, not FMB962. This page is the Ni-MH / IP54 / 1x5 unit. Port remains 5027.

Teltonika

Other Teltonika Devices

Teltonika

FMB001

Verified

Teltonika
Teltonika

FMB920

Verified

Teltonika
Teltonika

FMC003

Verified

Teltonika
Teltonika

FMC150

Verified

Teltonika
View All Teltonika Devices

Alternatives

Comparable devices

Teltonika

Teltonika FMB900

Same 1x5 class · no internal pack, 12 mm case

 Teltonika

Teltonika FMB920

Compact 2G with a Li-ion pack instead of Ni-MH

 Teltonika

Teltonika MTB100

Motorcycle-class 1x5 with 170 mAh Li-ion

FAQ

Frequently Asked Questions

Common questions about using the FMB962 with Traxelio

In Teltonika Configurator, set the SIM APN, then server domain gps.traxelio.com and TCP port 5027 (parameters 2004/2005, 2006=0). Save to device. SMS equivalent is two leading spaces then setparam 2001:APN;2004:gps.traxelio.com;2005:5027;2006:0.

No. Provision with Configurator, FOTA WEB, or Codec 12 SMS (two leading spaces when login and password are blank). Bluetooth pairing for Configurator uses code 5555 — that is not an SMS PIN.

No. Package contents list a 400 mAh Ni-MH 7.2 V cell. A wiki electrical table that lists 1800 mAh Li-Po is a mixed sibling row — ignore it on this page. Traxelio does not claim a three-day runtime.

Ingress rating is IP54 (splash). It is not IP67. First-start still warns the electronics are susceptible to standing water. Mount behind a panel with the engraved face toward the sky.

Yes, the FMB962 is fully compatible with Traxelio. Connect your device and start tracking in minutes with live GPS location, geo-fencing, alerts, and trip history.

Create your Traxelio account, provide your FMB962 tracker IMEI, and Traxelio guides the remaining setup.

The FMB962 works with all core Traxelio features: live tracking, trip history, geo-zone alerts, speed alerts, and more. Premium features like driving behavior analysis and activity reports are also available.

Traxelio plans start at 17 USD per vehicle per month with the Basic plan. Premium and Platinum plans offer additional features like driving behavior analysis, documents storage, and advanced reporting.
