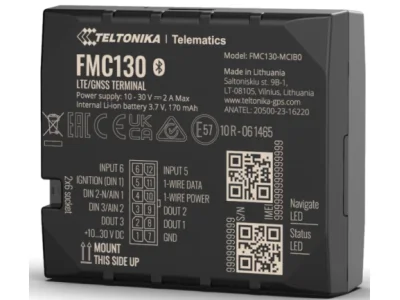

FMC130 GPS tracker
Teltonika

Teltonika FMC130 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5027
Teltonika Codec 8 Protocol

Send positions to this server

Connect your FMC130

Enter the tracker IMEI first, then verify your email and continue setup.

The Teltonika FMC130 is a hardwired 4G LTE Cat 1 GNSS tracker on Codec 8 (port 5027) · three digital outputs, analog inputs, 1-Wire, 170 mAh backup, and adapter-only CAN set in Teltonika Configurator, then Traxelio shows live map, geofences, and confirmed immobilizer cut.

12

Data Points

17+

Alerts

6

Vehicle Types

10-minute setup 2,347+ compatible devices No hardware changes needed Works with Teltonika Codec 8 Protocol protocol

Quick answers

Which protocol and port does the FMC130 use on Traxelio?

Teltonika Codec 8 Extended AVL on TCP port 5027. Point server domain gps.traxelio.com and port 5027 in Configurator parameters 2004/2005. Do not pick h02 (5013) or gt06 (5023).

How do I provision FMC130 without a four-digit SMS PIN?

Use Teltonika Configurator over USB or BLE (pairing code 5555). For SMS, send setparam with two leading spaces: APN 2001, server 2004, port 2005=5027, protocol 2006=0. Traxelio's setup block lists copy-ready values.

Does FMC130 include a CAN chip?

No. LV-CAN RX/TX pins take a Teltonika CAN adapter (LV-CAN200, ALL-CAN300, CAN-CONTROL). For an integrated dual-CAN 4G unit in the same housing class, compare FMC150.

How is FMC130 different from FMB130?

Same 2x6 I/O and adapter-only CAN. FMC130 adds LTE Cat 1 with 2G fallback (MeiG SLM320). FMB130 is 2G-only. Both speak Codec 8 on port 5027.

Overview

About the FMC130

The Teltonika FMC130 is a hardwired 4G LTE Cat 1 GNSS tracker with 2G fallback, internal antennas, a 170 mAh backup pack, three digital outputs, analog inputs, impulse/negative inputs, and 1-Wire for temperature or iButton. It reports Codec 8 AVL on port 5027. CAN data needs a Teltonika CAN adapter on the LV-CAN pins — the chip is not built in. That is FMC150. Traxelio decodes the stream into live map, geofences, and confirmed immobilizer cut after dashboard confirmation.

About Teltonika

Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.

Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Teltonika
Protocol Teltonika Codec 8 Protocol
Status Compatible
Data Points 12
Supported Alerts 17+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus Fuel Tank
Setup Start setup →

Hardware specifications

Network 4G Cat 1, 2G
GNSS GPS, GLONASS, Galileo, BeiDou, QZSS
Voltage range 10-30V
Battery 170 mAh
IP rating IP41
Operating temperature -20 to +85 °C
Dimensions 65x56.6x20.6 mm
Weight 61 g
CAN bus LV-CAN adapter (not integrated)
MPN FMC130

Accessories

12V/30A immobilizer relay (5-pin)

Open-collector DOUT wiring for engine cut

SKU: REL-5P-12V

iButton reader DS1990A

Driver identification on 1-Wire

SKU: DS1990A

Standard SIM with data + SMS

Provisioning and live reporting

SKU: SIM-DATA-SMS

Certified

Certifications

CE RED E-Mark RoHS REACH

Downloads

FMC130 · Also sold as Teltonika FMC1XX family by other brands

Data Collected

What Your FMC130 Reports to Traxelio

Your tracker sends 12 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Fuel Level

Fuel tank level percentage, used for refill detection and consumption reports.

Network

Network / Cell Info

Cell tower and signal strength data for connectivity diagnostics.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 17+ live alerts from your FMC130 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Fuel Refill

A fuel refill was detected.

Key Benefits

Why Track Your FMC130 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your FMC130 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your FMC130

Setup guidance

Guided setup available

gps.traxelio.com:5027

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the Teltonika setup guide →

Download or log in to Teltonika GPS / Configurator

Desktop Teltonika Configurator for APN and server setup · FMBT Android app covers BLE checks on supported FMB/FMC models.

Google Play Desktop download
Teltonika FMC125

Alternative model

Teltonika FMC125

This is not the same device, but it can be a practical alternative from the same brand.

$106.92

Common issues

SMS setparam never applies

Most SMS clients strip the two leading spaces Teltonika requires for blank login/password. Send the exact prefix, or set APN and server in Configurator over USB. Once TCP is up, GPRS setparam needs no spaces.

LTE never attaches on a West African SIM

ME1/ME3 list LTE B3/B20 used by Orange Senegal. Confirm the printed SKU before blaming Traxelio. Port stays 5027 once the radio attaches. Use a Cat 1 data SIM, not voice-only.

Buyer expected built-in CAN fuel on FMC130

FMC130 reads CAN only with an external Teltonika adapter on the LV-CAN pins. For a 4G unit with the CAN processor on the board, compare FMC150.

Teltonika

Other Teltonika Devices

Teltonika

FMB001

Verified

Teltonika
Teltonika

FMB920

Verified

Teltonika
Teltonika

FMC003

Verified

Teltonika
Teltonika

FMC150

Verified

Teltonika
View All Teltonika Devices

Alternatives

Comparable devices

Teltonika

Teltonika FMB130

2G sibling · same I/O and adapter-only CAN

 Teltonika

Teltonika FMC150

4G Cat 1 compact housing with integrated dual CAN

 Teltonika

Teltonika FMC125

4G Cat 1 with RS232/RS485 fuel paths

FAQ

Frequently Asked Questions

Common questions about using the FMC130 with Traxelio

In Teltonika Configurator, set the SIM APN, then server domain gps.traxelio.com and TCP port 5027 (parameters 2004/2005, 2006=0 for TCP). Save to device. SMS equivalent is two leading spaces then setparam 2001:APN;2004:gps.traxelio.com;2005:5027;2006:0. Traxelio's device page shows copy-ready strings for your ingest host.

No. Teltonika FMC hardware uses Configurator, FOTA WEB, or Codec 12 SMS (login and password, or two leading spaces when those are blank). Traxelio does not publish a default PIN on this page. Bluetooth pairing for Configurator uses code 5555 — that is not an SMS PIN.

Yes through an external relay on a digital output. Traxelio sends the immobilizer command only after explicit dashboard confirmation. Do not drive a fuel pump from the open-collector output.

No. FMC150 has an integrated dual-CAN processor on the 2x6 harness. FMC130 uses LV-CAN adapter pins only, with the same three digital outputs as FMB130. Both are IP41 cabin units on Codec 8 port 5027. Pick FMC150 when factory CAN is the integration; pick FMC130 when you need LTE plus extra digital outputs.

Yes, the FMC130 is fully compatible with Traxelio. Connect your device and start tracking in minutes with live GPS location, geo-fencing, alerts, and trip history.

Create your Traxelio account, provide your FMC130 tracker IMEI, and Traxelio guides the remaining setup.

The FMC130 works with all core Traxelio features: live tracking, trip history, geo-zone alerts, speed alerts, and more. Premium features like driving behavior analysis and activity reports are also available.

Traxelio plans start at 17 USD per vehicle per month with the Basic plan. Premium and Platinum plans offer additional features like driving behavior analysis, documents storage, and advanced reporting.
