FMM130 GPS tracker
Teltonika $65.00-$85.00

Teltonika FMM130 GPS Tracker · specs, setup, and live tracking

Server address

gps.traxelio.com:5027
Teltonika Codec 8 Protocol

Send positions to this server

Connect your FMM130

Enter the tracker IMEI first, then verify your email and continue setup.

Teltonika FMM130 is a compact hardwired Cat-M1 terminal (65×56.6×20.6 mm, IP41) on port 5027 · BLE 4.0 pairs an optional OBD dongle for RPM/DTC while power wires to the harness, then Traxelio maps GPS and BLE telemetry on Orange LTE-M and GSM in Senegal and West Africa.

12

Data Points

17+

Alerts

6

Vehicle Types

10-minute setup 1,905+ compatible devices No hardware changes needed Works with Teltonika Codec 8 Protocol protocol

Quick answers

Is FMM130 an OBD plug-in dongle?

No · FMM130 is a hardwired 10-30V terminal hidden under the dash. BLE 4.0 LE links a separate optional OBD dongle for engine data · the tracker itself never plugs into the OBD port.

Which port does FMM130 use on Traxelio?

Teltonika Codec 8 on TCP port 5027 · configure server IP and 5027 in Teltonika Configurator. Same decoder family as FMC125 and FMC920.

What does the BLE OBD dongle add?

When paired, Traxelio can show RPM, speed, and DTC codes from the dongle while GPS comes from the hardwired unit · useful for owner-drivers without RS485 fuel wiring.

Does FMM130 support remote engine cut?

No dedicated immobilizer output on FMM130 · choose FMC920 or FMC125 when confirmed digital-output cut is required. FMM130 targets visibility-first installs.

Overview

About the FMM130

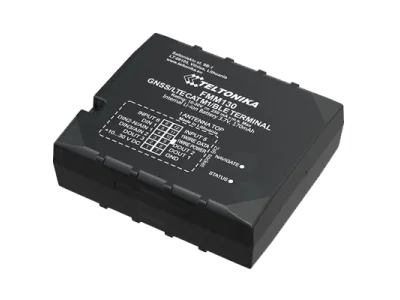

The Teltonika FMM130 is a compact hardwired Cat-M1/NB-IoT terminal (65×56.6×20.6 mm, IP41) that reports Codec 8 AVL on port 5027. BLE 4.0 LE pairs an optional OBD dongle for RPM and fault codes while the main unit wires to vehicle power · not a plug-in OBD dongle itself.

About Teltonika

Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.

Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →

Works with Traxelio · connect it yourself

Verify your email, then add the tracker details on the next screen.

Technical Specs

Device Specifications

Traxelio compatibility

Brand Teltonika
Protocol Teltonika Codec 8 Protocol
Status Compatible
Data Points 12
Supported Alerts 17+
Compatible Vehicles
Car Motorcycle Pick up Truck Bus Fuel Tank
Setup Start setup →

Hardware specifications

Network 4G Cat-M1, NB-IoT, 2G
GNSS GPS, GLONASS, Galileo, BeiDou
Voltage range 10-30V DC
IP rating IP41
Operating temperature -20 to +60 °C
Dimensions 65x56.6x20.6 mm
Weight 55 g
MPN FMM130

Accessories

Teltonika BLE OBD dongle

RPM and DTC over BLE 4.0 LE

SKU: TEL-BLE-OBD

Low-profile hardwire harness

Concealed 10-30V install

SKU: HW-HARNESS-SM

IoT SIM with LTE-M profile

Cat-M1 attach on Orange/Free

SKU: SIM-LTEM

Certified

Certifications

CE RoHS

Downloads

FMM130 · Also sold as Teltonika FMM Compact family by other brands

Data Collected

What Your FMM130 Reports to Traxelio

Your tracker sends 12 data points with every position update, giving you complete visibility.

Core Tracking

GPS Location

Live latitude and longitude coordinates updated every few seconds.

Speed

Current vehicle speed in km/h, used for speed alerts and driving analysis.

Altitude

Elevation above sea level, useful for terrain and route analysis.

Heading / Direction

Direction of travel in degrees, shown as compass bearing on the map.

Street Address

Reverse-geocoded street address for every position update.

GPS Accuracy

GPS signal precision in meters, indicating location reliability.

Engine & Driving

Ignition Status

Engine on/off status detected via the vehicle wiring harness.

Odometer / Mileage

Cumulative distance traveled, used for mileage reports and maintenance.

Engine Hours

Total engine running time, key for service interval tracking.

Sensors

Battery Level

Device or vehicle battery voltage to detect low-power conditions.

Fuel Level

Fuel tank level percentage, used for refill detection and consumption reports.

Network

Network / Cell Info

Cell tower and signal strength data for connectivity diagnostics.

Data availability depends on device configuration and installation type.

Detectable Events

Alerts & Notifications

Receive 17+ live alerts from your FMM130 via push notification, email, or WhatsApp.

Device online

The device is back online and transmitting data.

Device offline

The device has stopped reporting. It may have lost connection or power.

Device Moving

The vehicle is currently in motion.

Device Stopped

The vehicle is stationary.

Device overspeed

The vehicle is exceeding the set speed limit.

Geofence enter

The vehicle has entered a defined zone.

Geofence exit

The vehicle has exited a defined zone.

Tow

Possible towing activity detected, check vehicle status.

Ignition On

The ignition is ON. The engine has started.

Ignition Off

The ignition is OFF. The engine has been stopped.

Long Idle

The vehicle has been idling for a long period.

Hard Braking

Hard braking detected, driver safety alert.

Hard Acceleration

Rapid acceleration detected, driving behavior alert.

Hard Turning

Sharp turning detected, driving behavior alert.

Impact Detected

Potential impact detected based on sudden deceleration and course change pattern.

Fuel Refill

A fuel refill was detected.

Key Benefits

Why Track Your FMM130 with Traxelio

Know where my vehicles are

See all your vehicles on a live map

Keep records of all trips

Accurate mileage and trip history for billing and disputes

Prevent vehicle theft

Controlled immobilizer support for compatible installations

Get alerts when vehicles leave areas

Know instantly when vehicles cross designated zones

Monitor driver behavior

Track speeding, harsh braking, and risky driving

Control after-hours usage

Get alerts when vehicles move outside working hours

Reduce fuel costs

Identify fuel waste from idling and inefficient routes

Track maintenance schedules

Get reminders before breakdowns happen

Optimize delivery routes

Plan optimal routes and increase deliveries per day

Manage team access

Control who can see and manage which vehicles

Ready to put your FMM130 on Traxelio?

Enter the tracker IMEI first, then verify your email and continue setup.

Connect your tracker

Setup

How to Connect Your FMM130

Setup guidance

Guided setup available

gps.traxelio.com:5027

Public setup commands are available on the protocol guide for this command family.

APN commands depend on the carrier SIM in your tracker, so they are not shown here.

View protocol setup guide

Setup guidance

Enter the tracker IMEI first, then verify your email and continue setup.

Check setup path
See the Teltonika setup guide →

Download or log in to Teltonika GPS / Configurator

Teltonika Configurator for APN, server, and BLE OBD pairing · FMBT app for quick BLE status where supported.

Google Play Desktop download

Pricing

Hardware and Traxelio

You need the tracker and Traxelio together.

Hardware

$65.00 – $85.00

Catalogue band, not store price

Traxelio

17 USD – 29 USD/mo

From 17 USD/mo

Essential GPS tracking with live location, controlled immobilizer action for compatible installations, geofencing, and trip history.

See all plans →

Teltonika FMC125

Alternative model

Teltonika FMC125

This is not the same device, but it can be a practical alternative from the same brand.

$106.92

Common issues

BLE OBD dongle never pairs

Enable BLE OBD profile in Configurator and power the dongle from the vehicle OBD port while FMM130 has ignition sense. Traxelio shows BLE element status once the MAC address is saved.

Confused with OBD self-install products

FMM130 still needs hardwired +12V/GND/ignition · not a cigarette-lighter dongle. Budget 30-45 minutes for concealed wiring even though OBD data is wireless over BLE.

Cat-M1 attach fails on first boot

Write APN in Configurator before first road test · some IoT SIMs need LTE-M profile activation separate from standard LTE data on Orange SN.

Teltonika

Other Teltonika Devices

Teltonika

FMB001

Verified

Teltonika
Teltonika

FMB920

Verified

Teltonika
Teltonika

FMC003

Verified

Teltonika
Teltonika

FMC150

Verified

Teltonika
View All Teltonika Devices

Alternatives

Comparable devices

Teltonika

Teltonika FMC920

Full I/O and immobilizer output on FMB920 pinout

 Teltonika

Teltonika FMC125

RS485 fuel and dual SIM for heavy fleet integrations

 Teltonika

Teltonika FMB920

2G workhorse when Cat-M1 modems are unnecessary

FAQ

Frequently Asked Questions

Common questions about using the FMM130 with Traxelio

FMC003 plugs directly into the OBD-II port. FMM130 is a hardwired IP41 box that optionally talks to a BLE OBD dongle · better for hidden installs where the OBD port must stay free for diagnostics.

Use Teltonika Configurator to set APN, Traxelio ingest host, and port 5027, then pair the BLE OBD dongle if used. Traxelio decodes GPS from Codec 8 and BLE OBD elements once both links are active.

Teltonika documents 65×56.6×20.6 mm and 55 g with IP41 rating · plan dash or pillar mounting, not OBD socket clearance.

No · FMC125 carries RS485 fuel and dual SIM for tank-level integrations. FMM130 suits lighter tracking plus optional BLE OBD telemetry without RS485 wiring.

Yes, the FMM130 is fully compatible with Traxelio. Connect your device and start tracking in minutes with live GPS location, geo-fencing, alerts, and trip history.

Create your Traxelio account, provide your FMM130 tracker IMEI, and Traxelio guides the remaining setup.

The FMM130 works with all core Traxelio features: live tracking, trip history, geo-zone alerts, speed alerts, and more. Premium features like driving behavior analysis and activity reports are also available.

Traxelio plans start at 17 USD per vehicle per month with the Basic plan. Premium and Platinum plans offer additional features like driving behavior analysis, documents storage, and advanced reporting.
