Teltonika rugged IP67 battery-powered asset tracker with multi-year battery life, motion-triggered reporting, and Codec 8 protocol · for unpowered trailers, containers, and equipment.
Data Points
Alerts
Vehicle Types
Up to 5 years on default motion-triggered reporting (one position per movement event, plus daily heartbeat). At 1-position-per-hour: ~2 years. Calculated at room temp; cold weather reduces life by ~30%.
Yes · IP67 handles dust and rain, 2G/4G fallback covers the corridor (Dakar, Bamako, Lagos), multi-year battery means no maintenance during the trailer's working life. Magnetic mount or screw mount on the trailer chassis.
TAT100 is the simpler / cheaper indoor asset tracker (IP54). TAT140 adds IP67 weatherproofing for outdoor use, more rugged housing, and slightly longer battery. For trailers exposed to weather, TAT140. For indoor containers or warehouse assets, TAT100 is enough.
Overview

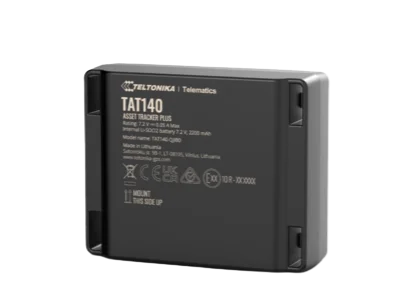

Teltonika TAT140 is a rugged IP67 battery-powered asset tracker with multi-year battery life for unpowered trailers, containers, and equipment.
About Teltonika
Lithuanian fleet-grade GPS hardware (FMB, FMC, FMM families) shipped to 150+ countries, the de-facto European standard for commercial vehicles.
Speaks the Teltonika Codec 8 Protocol protocol. Read the protocol reference →
Works with Traxelio · connect it yourself
Verify your email, then add the tracker details on the next screen.
Configurator is a desktop app (Windows) used to set the server endpoint, accelerometer thresholds, geofence rules, and I/O assignments on FMB/FMC/FMM devices over USB. Codec 8 + GPRS settings are read and written from the same screen. There is no end-user mobile app · Teltonika devices report to a platform, the platform (Traxelio, Wialon, Navixy, etc.) provides the user app.
Technical Specs
| Brand | Teltonika |
| Protocol | Codec 8 / Codec 8 Extended |
| Status | Compatible |
| Data Points | 12 |
| Supported Alerts | 17+ |
| Compatible Vehicles |
Car
Motorcycle
Pick up
Truck
Bus
Fuel Tank
|
| Setup | Start setup → |
Certified
Data Collected
Your tracker sends 12 data points with every position update, giving you complete visibility.
Live latitude and longitude coordinates updated every few seconds.
Current vehicle speed in km/h, used for speed alerts and driving analysis.
Elevation above sea level, useful for terrain and route analysis.
Direction of travel in degrees, shown as compass bearing on the map.
Reverse-geocoded street address for every position update.
GPS signal precision in meters, indicating location reliability.
Engine on/off status detected via the vehicle wiring harness.
Cumulative distance traveled, used for mileage reports and maintenance.
Total engine running time, key for service interval tracking.
Device or vehicle battery voltage to detect low-power conditions.
Fuel tank level percentage, used for refill detection and consumption reports.
Cell tower and signal strength data for connectivity diagnostics.
Data availability depends on device configuration and installation type.
Detectable Events
Receive 17+ live alerts from your TAT140 via push notification, email, or WhatsApp.
The device is back online and transmitting data.
The device has stopped reporting. It may have lost connection or power.
The vehicle is currently in motion.
The vehicle is stationary.
The vehicle is exceeding the set speed limit.
The vehicle has entered a defined zone.
The vehicle has exited a defined zone.
Possible towing activity detected, check vehicle status.
The ignition is ON. The engine has started.
The ignition is OFF. The engine has been stopped.
The vehicle has been idling for a long period.
Hard braking detected, driver safety alert.
Rapid acceleration detected, driving behavior alert.
Sharp turning detected, driving behavior alert.
Potential impact detected based on sudden deceleration and course change pattern.
A fuel refill was detected.
Key Benefits
See all your vehicles on a live map
Accurate mileage and trip history for billing and disputes
Controlled immobilizer support for compatible installations
Know instantly when vehicles cross designated zones
Track speeding, harsh braking, and risky driving
Get alerts when vehicles move outside working hours
Identify fuel waste from idling and inefficient routes
Get reminders before breakdowns happen
Plan optimal routes and increase deliveries per day
Control who can see and manage which vehicles
Enter the tracker IMEI first, then verify your email and continue setup.
Setup
Setup guidance
gps.traxelio.com:5027
Public setup commands are available on the protocol guide for this command family.
APN commands depend on the carrier SIM in your tracker, so they are not shown here.
View protocol setup guideSetup guidance
Enter the tracker IMEI first, then verify your email and continue setup.
Pricing
This device retails for $60.00 – $90.00
Traxelio plan from 17 USD/mo · See all plans →
Default motion threshold is 0.1g · should fire on any meaningful movement. If not firing, check: (1) motion-trigger sensitivity in Configurator, (2) device mounting is rigid (loose mounting absorbs vibration), (3) firmware is up to date.
Most common: reporting interval too aggressive. Default heartbeat is 24h, that's the right baseline for asset tracking. If someone set it to 1h heartbeat for testing and forgot, the device burns through battery in months instead of years.
Teltonika
Alternatives
FAQ
Common questions about using the TAT140 with Traxelio
Start setup yourself, with help available when you need it.
Availability
Check your IMEI to connect a tracker you already own, or request a quote for this model.
